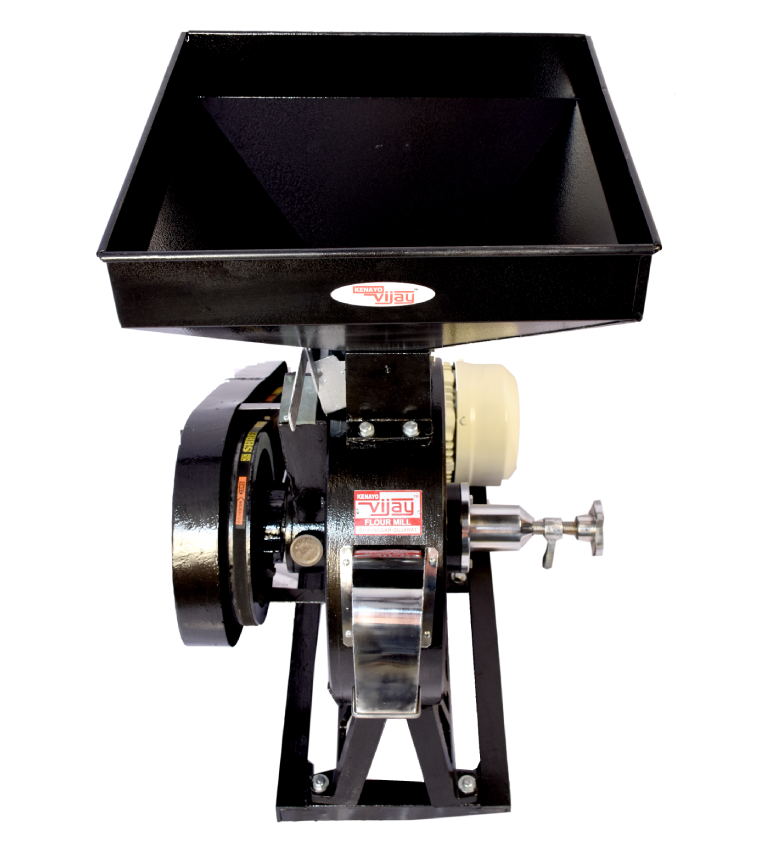

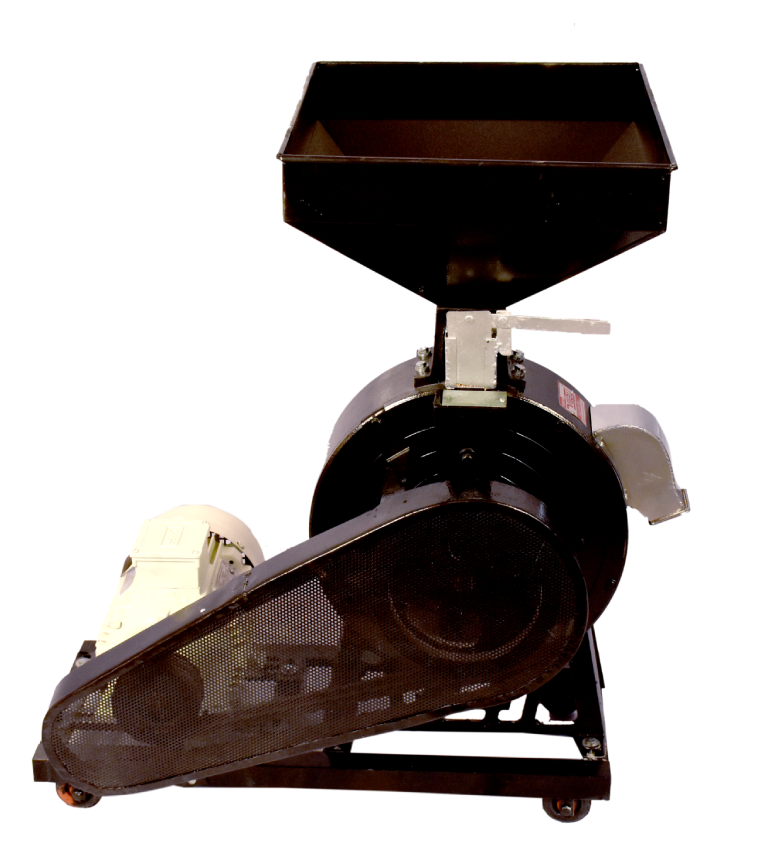

Giving new system with emery stone grinding flour mill.
Moving easy and operate smooth with easy system.
Operate 5 HP 3Phase motor.
Maintenance Free emery stone grinding wheel.
Emery stone grinding wheel use long time with same quality.
No need to required stone balancing and maintenance.
2.52" X 16" inch stone PAIR size.
After milling No need to clean.
DOMESTIC & COMMERCIAL USE FLOUR MILL.
4 TO 8 WORKING DAYS
Giving new system with emery stone grinding flour mill.
Moving easy and operate smooth with easy system.
Operate 5 HP 3Phase motor.
Maintenance Free emery stone grinding wheel.
Emery stone grinding wheel use long time with same quality.
No need to required stone balancing and maintenance.
2.52" X 16" inch stone PAIR size.
After milling No need to clean.
DOMESTIC & COMMERCIAL USE FLOUR MILL.
DELIVERY TIME : 4 TO 8 WORKING DAYS
Stone Size | 400 X 33 X 75 |
---|---|
Flouring Capacity | 65 TO 70 KG PER HRS (FINE FLOUR) |
Basic Plating | CROME PLATED |
Body Size | 39" HIGHT X 13" WIDTH |
Net Weight (KG) Widhoute motor | 140 to 150 kg approx |
Shafting | 35MM EN8D WITH TEMPERING (HARD) |
Matrial of Construction (content) | Mild Steel |
Hopper / Container Capacity (KG) | 22 TO 25 KG |
Electrical Data | 5HP, 3 phase AC motor, 50 Hz |
Motor Speed (RPM) | 1440 RPM |
V Belt Drive | Double ( B Section) |
POWER COSUMTION | 3.70KWH |
Certification | CE & ISO |
Voltage | 220 V |
